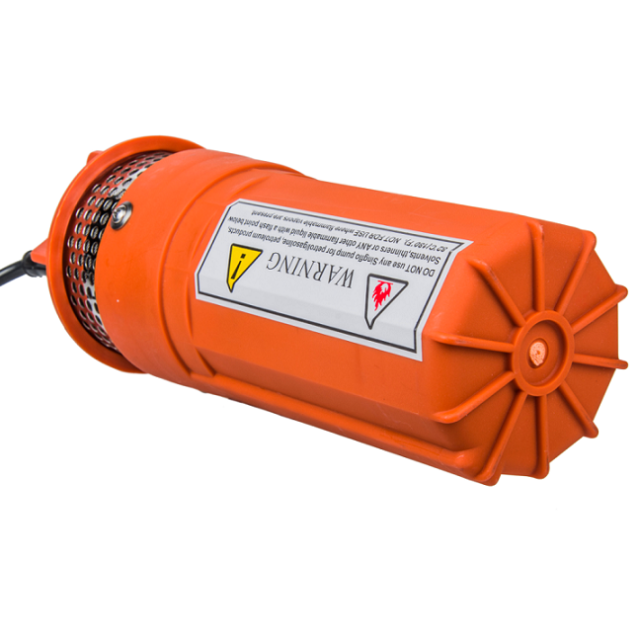

JETMAKER Submersible Deep Well Solar Water Pump HY Series

The solution to your remote water pumping needs. This pump is rugged, durable and built to last. This pump delivers a steady 94.7GPH(360LPH) at its maximum depth of 100feet (30m) when supplied with 24/12VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering. Irrigation, pond ration , remote homes and cabins.

Feature:
1. For 4″ wells or larger
2. Quick disconnect with “Watertight-Gland” Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Wire Length:3M

   Model

  Volt

   (V)

   Flow rate

     (LPM)

 Max.Lift

  (M)

Max.Submersible

          (M)

Amps

  (A)

Packing Size

   (mm)

N.W/G.W

  ( kgs)

HY1240-30    12     6.0    70         30    4.0 355*130*110 2.9/3.0
HY2440-30    24     6.0    70          30    8.0 355*130*110 2.9/3.0


The controller function:

This controller can be use for 12/24V pump automatic identification,It is designed according to the HY1240-30/2440-30 duty cycle specially.
Feature:
* Setting the pump working time: work 2.5hours, resting 30 minutes.If work with battery together, the rest time can charge the battery.When the sunshine is not good or at night, the pump can work with the battery automatically.
If you use the pump without battery, you can connect the solar panel wire to the battery button in the controller directly, it also can work in 2.5hours rest 30 minutes duty cycle
