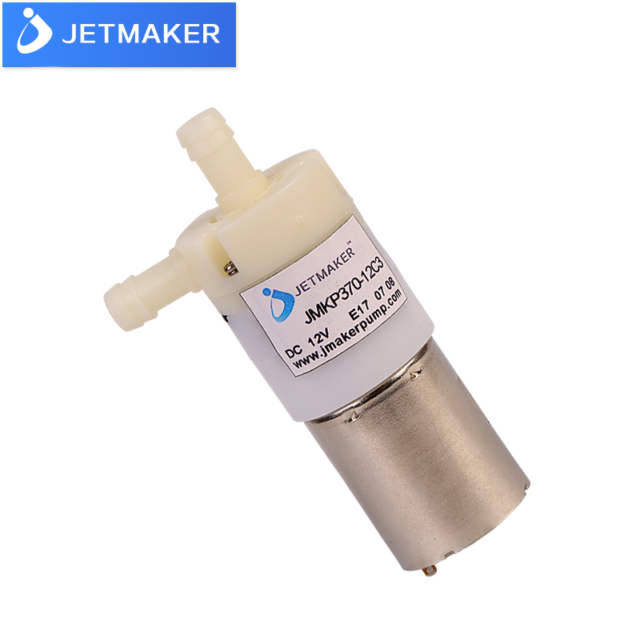

JMKP370-12C3 DC 12V Mini Water Pump
Mainly uesd for household appliances, portable drinking water equipment, coffee machine, humidifier, beauty instrument.
Product Dimension：
| Product Specification： | |
| Rated Voltage | DC 12V |
| Rated Curren | ≤600mA |
| Air Flow | 4-5LPM |
| Maximum Pressuer | ≥80Kpa |
| (300mmHg) Leakage | ≤3mmHg/min |
| Reatart Voltage | ≤DC 9.6V |
| Noise | ≤65dB (30cm away) |
| Rated Life | ≥30000 cycles |
| Key | Description |
| 1 | Upper Housing with Clips |
| 2 | Check Vlave Assembly |
| 3 | Diaphragm Assembly(including screws) |
| 4 | Lower Housing Assembly |
| Key | Description |
| 5 | Motors |
| 6 | Connectors |
| 7 | Pump Head Assembly |
| 8 | Side Clips |
 |
Shipping Information | |
| Unit Weight: | 2.7kgs | |
| Unit Size: | 26*12.5*10.5CM | |
| Master Carton Qty: | 10pcs | |
| Master Carton Size: | 63*29*22.5CM | |
| Master Carton Weight: | 28kgs | |
