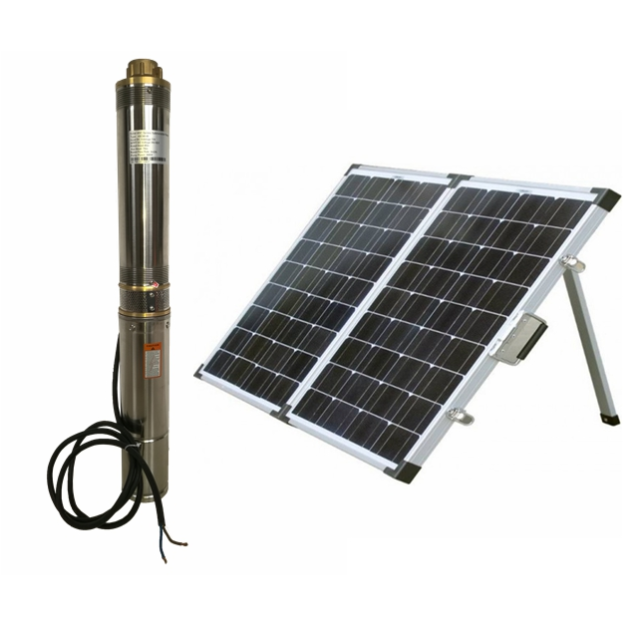

300W Jetmaker DC Solar Submersible Power Water Pump With Soalr Panel Array for agriculture
| TYPE：Power frenquency Solar pump | ||||||||||
| Model | Power | MPPT voltage | open Voltage | Max.Lift | Rated lift | Max.Flow | Rated flow | Inlet port | Outlet port | Protecton |
| W | V | V | m | m | T/H | T/H | mm | |||
| 4SC48-70 | 600 | 28V-72V | 88V | 70 | 40 | 4 | 2 | 100 | 1.2 | IP68 |
| 4SC24-35 | 300 | 18V-36V | 44V | 40 | 20 | 4 | 2 | 100 | 1.2 | IP68 |
Features:
1. Hold protection on too high & lowvoltage, protection on motor locked rotor & Current overload.Lack of water auto protection.Keep system automatical & intellectualized working without personal control.
2. Stainless steel body with brass pump head.
3.Pump Satandard with 3M cable,longer cable customize offered.
4. Recommend Solar panel offered 130-150% power.
5. Warranty of 36months.
 |
Shipping Information | |
| Unit Weight: | 3.5kgs | |
| Unit Size: | 24*13.5*13.8 CM | |
| Master Carton Qty: | 8pcs | |
| Master Carton Size: | 55*29*20CM | |
| Master Carton Weight: | 28kgs | |
