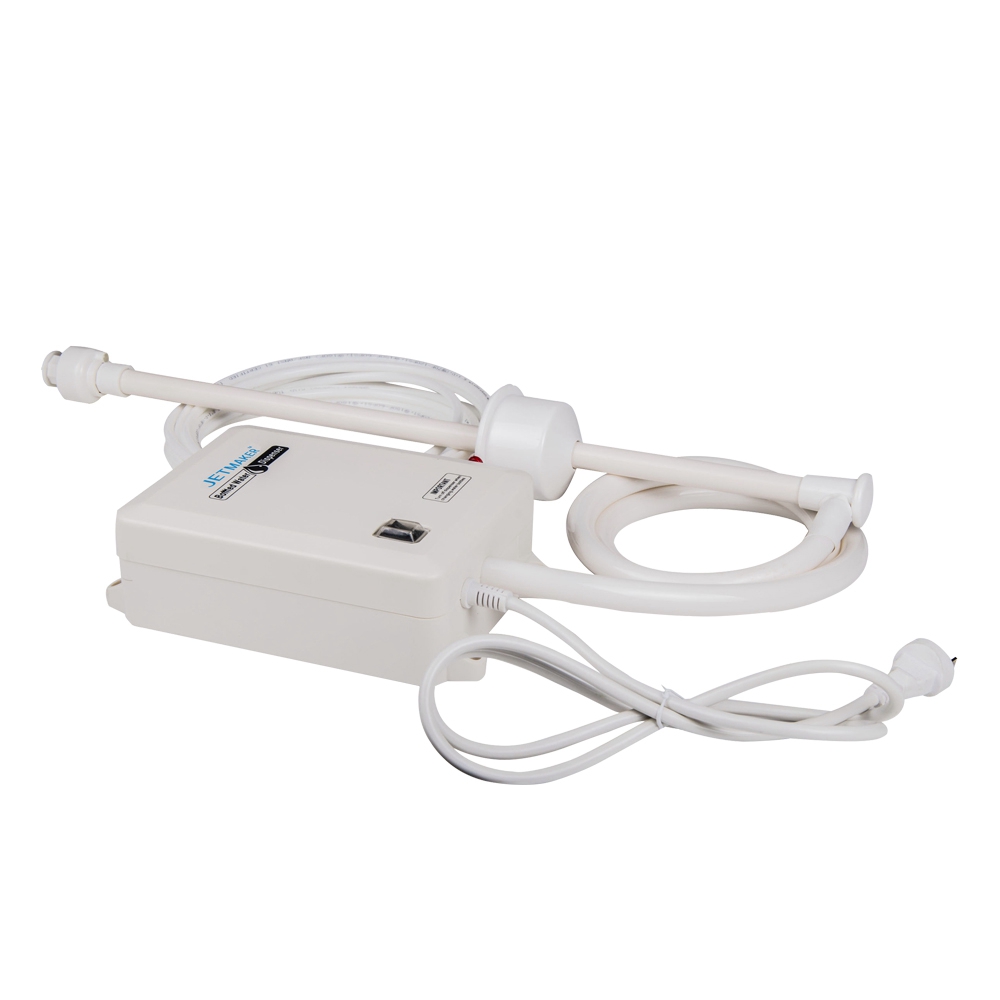

BW1000A 115V AC Plastic Flojet Bottled Water Dispenser Home Appliance Parts
Pump recipe-quality water from commercial bottles to ensure better-tasting hot and cold beverages. The BW Series Bottled Water System is designed to work with coffee/tea makers, refrigerator ice and water dispensers, espresso carts and portable sinks or any use requiring portable potable water.
The BW Series Bottled Water System is also designed for convenience. The pump automatically shuts off when the water source is depleted and restarts when water is restored. Its compact size supports easy mounting.
Feature:
1.Easiest way to connect this to your filtration kit/espresso machine
2.Float switch for auto shut-off when bottle is empty
3.Built-in check valve to prevent back flow
4.Universal seal cap fits most water containers
5. Compact size for easy mounting
6.Long Life Motor: Ensures years of reliable operation
7.Easy installed
Model No.: BW Series
- Illuminated On/Off Switch Provides clear visibility in dark cabinets or hard to reach places
- Long Life Motor Ensures years of reliable operation.
- Flojet Diaphragm Pump Provides dependable run dry capabilities, extending the life of the pump.
- Quick Disconnect Ports Allows for easy wand replacement in seconds.
- Quiet Operation Equipped with noise dampening rubber feet to minimize noise pollution.
- Thermal Protection Prevents overheating, protecting the pump and control box from damage.
B. Pump Module with On/Off Rocker Switch, 3.5 ft. (1m) Cord
C. 20 ft (6.1m) of 1/4 in. (6.35mm) Discharge Tube
D. Optional Refrigerator Fitting
Technical Data
| Model | GPM | Max PSI |
Outlet | Tubing | Volts | Amps | Cycle | Cord | Dimensions (H x W x D) |
Wt (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| BW1000A | 1.0 | 40 | 1/4″ | 20′ | 115 | 0.5 | 50/60 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
| BW2000A | 1.0 | 40 | 1/4” | 20′ | 220 | 0.25 | 50/60 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
| BW3000A | 1.0 | 40 | 1/4” | 20′ | 12 | 5 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
 |
Shipping Information | |
| Unit Weight: | 3.3kg | |
| Unit Size: | 62*26*9 cm | |
| Master Carton Qty: | 10pcs | |
| Master Carton Size: | 62*54*46cm | |
| Master Carton Weight: | 34.0kgs | |
