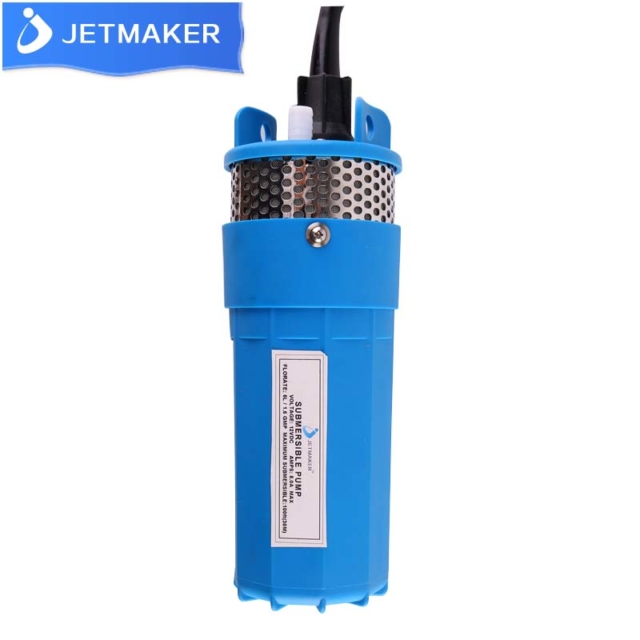

Jetmaker solar pump water
Product Parameters
|
Model
|
Volt
|
Amaps
|
Flow Rate
(lph/gph) |
Maximum
Lift |
Maximum
Submersion |
Packing Size
(mm) |
N.W/G.W
|
|
YM2440-30
|
24DVC
|
4.0
|
360/96
|
230Feet
|
100Feet
|
355*130*110
|
2.9/3.1
|
Product Description
Features:
1. For 4″ wells or larger
2. Quick disconnect with “Watertight-Gland”Design Pat Pend
3 . Run dry without damage
4. Corrosion-proof housing with stainless-steel fastener
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Postive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9.Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
10.Outlet Port: 1/2″(12.mm) Barbed Fitting
11 Inlet: 50 Mesh Stainless Steel Fitting
12:Material: High Strength Engineered Plastic
Application
Product Details Show
STANDARD PUMP CONFIGURATIONS
| Model | Volt | Flow rate(LPM/GPM)) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
| FL-55 | 12Vdc | 20.0(5.26) | 55(3.8) | EPDM/VITON | 16.0 |
| FL-55B | 24Vdc | 20.0(5.26) | 55(3.8) | EPDM/VITON | 8.0 |
| FL-200 | 12Vdc | 10.0(2.63) | 200(13.8) | EPDM/VITON | 15.0 |
| FL-200B | 24Vdc | 10.0(2.63) | 200(13.8) | EPDM/VITON | 8.0 |
 |
Shipping Information | |
| Unit Weight: | 3.5kgs | |
| Unit Size: | 24*13.5*13.8 CM | |
| Master Carton Qty: | 8pcs | |
| Master Carton Size: | 55*29*20CM | |
| Master Carton Weight: | 28kgs | |
